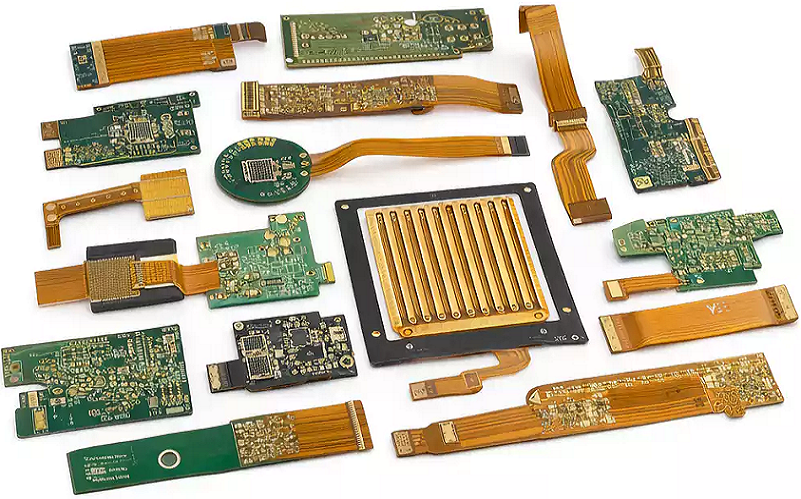

Flexible PCB vs Rigid PCB: What’s the Difference?

Flexible PCB (FPC), rigid PCB, and rigid-flex PCB represent the three primary interconnect technologies in modern electronics. Rigid PCBs use stable FR-4 substrates for flat, fixed assemblies; flexible PCBs employ thin polyimide films for dynamic bending and 3D routing; rigid-flex PCBs combine both materials for hybrid applications requiring structural support and conformability. This analysis provides precise manufacturing parameters, IPC-aligned specifications, cost implications, and practical selection criteria to guide engineers in choosing the optimal interconnect solution for specific design requirements.

Rigid PCB (Standard Printed Circuit Board)

Core Material & Physical Specifications

Rigid PCBs utilize glass-reinforced epoxy laminate (FR-4) as the primary substrate material, providing structural stability and consistent electrical performance.

• Standard thickness: 0.4mm, 0.8mm, 1.0mm, 1.6mm, 2.0mm (±10% tolerance per IPC-4101)
• Copper thickness: 18μm (1/2oz), 35μm (1oz), 70μm (2oz) standard options
• Minimum line width/space: 75μm/75μm (standard), 50μm/50μm (precision), 30μm/30μm (advanced HDI)
• Minimum drill diameter: 150μm (mechanical), 75μm (laser)
• Operating temperature: -40°C to 130°C (standard TG130), up to 170°C (high-TG materials)
• Compliance: IPC-6012 (qualification/performance), IPC-2221 (generic design standards)

Structural Characteristics & Manufacturing

Rigid PCB construction follows established lamination and etching processes with high-volume production efficiency.

• Layer count: 1-30+ layers for complex designs
• Layer construction: Alternating copper foils and prepreg dielectric bonded under heat and pressure
• Surface finishes: HASL, immersion gold (ENIG), immersion tin, OSP, hard gold
• Panel size: Standard 400mm×500mm, 450mm×600mm production panels
• Manufacturing yield: 97-99% for standard designs, 90-95% for complex HDI
• Assembly compatibility: Excellent SMT and through-hole component mounting stability

Flexible PCB (FPC/Flexible Printed Circuit)

Core Material & Physical Specifications

Flexible PCBs employ flexible polymer dielectrics enabling repeated bending and dynamic mechanical performance.

• Base dielectric: Polyimide (PI) 12.5μm, 25μm, 50μm, 75μm thickness
• Total board thickness: 50μm-125μm (single/double-sided), 150μm-400μm (multilayer)
• Copper type: Rolled Annealed (RA) 12-35μm (25-30% elongation) or Electrodeposited (ED) 12-70μm (10-15% elongation)
• Minimum line width/space: 50μm/50μm (standard), 30μm/30μm (precision), 20μm/20μm (advanced)
• Minimum bend radius: Static: 2× substrate thickness; Dynamic: 5-10× thickness (IPC-2223)
• Operating temperature: -40°C to 150°C (standard), up to 200°C (specialized materials)
• Compliance: IPC-6013 (flexible PCB standards), IPC-2223 (flex/rigid-flex design)

Learn more about: What Is Flexible PCB

Structural Characteristics & Manufacturing

Flexible PCB construction requires specialized handling due to material thinness and flexibility constraints.

• Layer count: 1-12 layers for pure flexible designs
• Protective layers: Coverlay (25-50μm polyimide) or liquid photo-imageable solder mask
• Stiffener options: FR-4, PET, or stainless steel (0.1-0.5mm) for component mounting areas
• Minimum via diameter: 75μm (laser-drilled), 150μm (mechanical)
• Aspect ratio: Maximum 1:1 for consistent plating coverage
• Manufacturing yield: 85-92% for standard designs, 75-85% for complex multilayer
• Dynamic flex life: 10,000-1,000,000+ cycles based on materials and design

Learn more about: Flexible PCB: A Comprehensive Guide to Features, Applications, Types & Key Considerations

Rigid-Flex PCB (Hybrid Technology)

Core Material & Physical Specifications

Rigid-flex PCBs integrate rigid FR-4 sections with flexible polyimide zones in a unified structure.

• Rigid sections: 0.2-1.0mm thick FR-4 for component mounting
• Flexible sections: 25-75μm polyimide for bending capabilities
• Transition zone: Engineered interface with gradual thickness reduction
• Total thickness: 0.4-2.0mm depending on layer configuration
• Copper thickness: 18-35μm in rigid areas, 12-18μm in flex zones
• Minimum line width/space: 50μm/50μm (rigid), 30μm/30μm (flex)
• Operating temperature: -40°C to 125°C (standard), up to 150°C (high-performance)

Structural Characteristics & Manufacturing

Rigid-flex manufacturing combines rigid and flexible processes with specialized lamination techniques.

• Layer count: 4-30 total layers (2-10 flex layers embedded)
• Interconnection: Plated through-vias connecting all layers, microvias for high-density sections
• Bend capability: Static shaping only (no dynamic flexing in production assemblies)
• Minimum bend radius: 5-10× total flex thickness in transition zones
• Manufacturing complexity: Highest of three technologies, requiring precise alignment
• Production yield: 70-85% for standard designs, 60-75% for complex multilayer
• Assembly efficiency: Components mounted on rigid sections; flexible zones for 3D routing

Comprehensive Comparison Table

Parameter	Rigid PCB	Flexible PCB (FPC)	Rigid-Flex PCB
Primary Substrate	FR-4 Glass Epoxy	Polyimide (PI) Film	FR-4 + Polyimide
Typical Thickness	0.4-3.2mm	0.05-0.4mm	0.4-2.0mm
Weight (Relative)	100% (Baseline)	10-40%	30-60%
Space Saving	0% (Baseline)	60-90%	40-70%
Minimum Line/Space	30μm/30μm	20μm/20μm	30μm/30μm
Minimum Drill Size	75μm (laser)	75μm (laser)	75μm (laser)
Bend Capability	None	Static/Dynamic	Static Only
Operating Temp	-40°C to 130°C	-40°C to 150°C	-40°C to 125°C
Relative Cost	1.0x (Baseline)	1.5-3.0x	2.5-4.0x
Production Yield	95-99%	85-92%	70-85%
Vibration Resistance	Good	Excellent	Very Good
Thermal Cycling	Good	Excellent	Very Good
Assembly Complexity	Low	Medium-High	High
IPC Standard	IPC-6012	IPC-6013	IPC-6013/6012

Key Advantages by Category

Rigid PCB Advantages

• Cost Efficiency: Lowest material and manufacturing costs for high-volume production
• Structural Stability: Excellent rigidity for component-heavy assemblies
• Manufacturing Maturity: Established processes with highest production yields
• Design Simplicity: Straightforward design rules with extensive design support
• Component Support: Ideal for large, heavy, or high-pin-count components
• Thermal Performance: Efficient heat dissipation through thicker substrates
• Repairability: Easier rework and component replacement procedures

Flexible PCB Advantages

• Space Optimization: Reduces assembly volume by 60-90% compared to wiring harnesses
• Weight Reduction: 60-90% lighter than equivalent rigid interconnect solutions
• Dynamic Flexing: Withstands 10,000-1,000,000+ bending cycles without failure
• 3D Routing: Conforms to irregular shapes and enables innovative form factors
• Reliability: Reduces connection points by 40-60%, minimizing failure risks
• Vibration Resistance: Superior performance in high-vibration environments
• High Density: Supports finer line widths and higher routing density

Rigid-Flex PCB Advantages

• Hybrid Performance: Combines rigid mounting stability with flexible routing
• High Reliability: Eliminates connectors between rigid sections, reducing failure points
• Space Efficiency: Optimizes internal layout with 3D interconnect capability
• Component Density: Supports high-component-density rigid sections
• Environmental Resistance: Excellent performance in harsh conditions
• Design Integration: Unified structure simplifies complex assemblies
• Signal Integrity: Controlled impedance across rigid and flexible sections

Limitations & Disadvantages

Rigid PCB Limitations

• Geometry Constraints: Limited to flat, 2-dimensional installations
• Weight Penalty: Heavier profile impacting portable applications
• Space Inefficiency: Requires larger enclosure volumes
• Vulnerability: Susceptible to damage under shock and vibration
• Assembly Complexity: Requires connectors for multi-board systems
• Flexibility: Zero bending capability restricting design options

Flexible PCB Limitations

• Higher Cost: 1.5-3x more expensive than equivalent rigid PCBs
• Handling Sensitivity: Thin structure requires specialized manufacturing processes
• Component Restrictions: Limited direct component mounting without stiffeners
• Design Complexity: Strict bend radius and routing constraints
• Repairability: Difficult rework and component replacement procedures
• Material Cost: Premium pricing for polyimide and specialized copper foils

Learn more about: What Is a Flexible Printed Circuit?

Rigid-Flex PCB Limitations

• Highest Cost: 2.5-4x more expensive than standard rigid PCBs
• Manufacturing Complexity: Most demanding production processes
• Longer Lead Times: Extended fabrication cycles (2-4x standard rigid PCBs)
• Design Restrictions: Complex design rules and transition zone requirements
• Thickness Constraints: Increased overall thickness compared to pure flex
• Yield Challenges: Lower production yields impacting cost-effectiveness

Primary Applications

Rigid PCB Applications

• Industrial Controls: Automation equipment, power supplies, control panels
• Consumer Electronics: TVs, audio equipment, desktop computer components
• Telecommunications: Routers, servers, base station equipment
• Automotive: Engine control units, infotainment systems (non-dynamic areas)
• Medical Devices: Diagnostic equipment, stationary monitoring systems
• Lighting: LED drivers, fixed lighting assemblies
• Power Electronics: Inverters, converters, high-power distribution boards

Flexible PCB Applications

• Wearable Technology: Smart watches, fitness trackers, hearables
• Portable Devices: Smartphones, tablets, digital cameras
• Medical Devices: Wearable monitors, surgical equipment, diagnostic tools
• Automotive: HUD systems, camera connections, interior controls
• Aerospace: Satellite systems, avionics, control surfaces
• Robotics: Articulating joints, dynamic sensor connections
• High-Density Interconnect: Compact assemblies requiring 3D routing

Rigid-Flex PCB Applications

• Medical Implants: Diagnostic devices, portable monitoring equipment
• Aerospace: Satellite systems, flight controls, communication equipment
• Military: Portable communications, guidance systems, radar equipment
• Automotive: ADAS sensors, electric vehicle controls, safety systems
• Industrial: Compact robotics, handheld measurement devices
• Telecommunications: Portable radios, satellite communication equipment
• High-Reliability: Applications requiring zero connector failure risk

Core Technical Parameters

Dimensional Specifications

• Rigid PCB: Min. line/space 30μm/30μm; min. drill 75μm; max. aspect ratio 10:1
• Flexible PCB: Min. line/space 20μm/20μm; min. laser via 75μm; bend radius 2-10× thickness
• Rigid-Flex: Min. line/space 30μm/30μm; transition length ≥5× flex thickness; rigid-flex gap ≤0.5mm

Electrical Performance

• Impedance Control: Rigid ±5% (IPC-2221); Flex ±5% (IPC-2223); Rigid-Flex ±6%
• Voltage Withstanding: Rigid 1.5-5kV; Flex 1.5-3kV; Rigid-Flex 1.5-4kV
• Insulation Resistance: >10¹⁴Ω/square for all three technologies
• Current Capacity: 1-5A per 100μm width (18μm copper) for all types

Environmental Specifications

• Temperature Range: Rigid -40°C to 130°C; Flex -40°C to 150°C; Rigid-Flex -40°C to 125°C
• Moisture Resistance: <0.5% water absorption after 24-hour immersion
• Vibration Resistance: 10-2000Hz, 20G acceleration without degradation
• Thermal Shock: Withstands 100 cycles (-40°C to 125°C) without failure

Case Study

Project Overview

Application: Portable ultrasound scanner; Original design: 6-layer rigid PCB with 8 connectors; Replacement: 8-layer rigid-flex with 3 rigid sections and 2 flex zones; Target: Reduce size by 50% and weight by 60%.

Initial Challenges

• Rigid PCB assembly required 8 inter-board connectors creating 16 potential failure points
• Total assembly volume 180cm³, weight 285g
• Vibration testing failed at 800Hz due to connector resonance
• Production yield 89% with frequent connector soldering issues
• Assembly time 45 minutes per unit with high labor cost

Rigid-Flex Implementation

• Designed 8-layer rigid-flex with 0.8mm rigid sections and 50μm flex zones
• Eliminated all 8 connectors, reducing failure points by 100%
• Implemented controlled impedance (90Ω ±5%) on critical signal paths
• Added teardrop vias and optimized transition zones per IPC-2223
• Applied RA copper in flex areas for enhanced bending reliability

Performance Results

• Volume reduced to 82cm³ (54% reduction), weight 108g (62% reduction)
• Vibration testing passed 2000Hz at 20G acceleration
• Bending reliability exceeded 15,000 cycles without performance degradation
• Production yield improved to 92.3% despite higher complexity
• Assembly time reduced to 18 minutes (60% reduction)
• Field failure rate decreased from 2.3% to 0.15% annually

Common Design Errors

Rigid PCB Design Mistakes

1. Insufficient clearance: <0.3mm from trace to board edge causing delamination
2. Acid traps: <90° angles creating etching defects and trace weakening
3. Via placement: <0.5mm from pad edge leading to solder wicking issues
4. Unbalanced copper: >30% copper distribution difference causing warping
5. Insufficient annular ring: <75μm width resulting in plating gaps

Flexible PCB Design Mistakes

1. Vias in flex zones: Plated vias within dynamic bending areas causing early fractures
2. Insufficient bend radius: <5× thickness for dynamic applications (IPC-2223 violation)
3. Perpendicular routing: Traces crossing bend axis increasing stress by 500%
4. Inadequate coverlay: <0.5mm margin causing insulation failure
5. ED copper in dynamic zones: Using electrodeposited instead of RA copper

Learn more about: What is a Flexible Circuit Board? A Complete Guide for Beginners

Rigid-Flex PCB Design Mistakes

1. Abrupt transitions: No gradual thickness change between rigid and flex sections
2. Insufficient transition length: <5× flex thickness creating stress concentrations
3. Unequal layer counts: Mismatched rigid/flex layer counts causing delamination
4. Component placement too close: <2mm from transition zone causing fractures
5. Unbalanced copper: Asymmetric distribution creating warpage during lamination

Quality Control & Testing Standards

Rigid PCB Testing

• 100% electrical continuity and isolation testing
• Thermal stress testing per IPC-2221 (125°C for 2 hours)
• Solderability testing per IPC-TM-650 method 2.4.14
• Microsection analysis for layer registration and plating quality
• Impedance testing for controlled impedance boards (±5% tolerance)

Flexible PCB Testing

• Dynamic bend cycling (10,000-100,000 cycles) per IPC-6013
• Flexible reliability testing (90° bend 1,000 cycles)
• Thermal shock testing (-40°C to 125°C, 100 cycles)
• Adhesion testing of conductor and coverlay layers
• Surface insulation resistance under elevated humidity

Rigid-Flex PCB Testing

• Combined rigid and flex testing protocols
• Transition zone stress testing (1,000 thermal cycles)
• Delamination resistance testing (pressure cooker test)
• Rigid-flex interface reliability assessment
• 100% X-ray inspection of plated through-vias

Frequently Asked Questions

Q1: When should I choose flexible PCB over rigid PCB?

A1: Choose flexible PCB when you need dynamic bending, 3D routing, space savings (60-90%), weight reduction (60-90%), or enhanced reliability through fewer connectors. Ideal for wearable devices, portable electronics, and applications with repeated motion.

Learn more about: What is a Flexible PCB? A Complete Guide for Beginners

Q2: Is rigid-flex PCB worth the premium cost?

A2: Rigid-flex justifies its 2.5-4x cost premium in high-reliability applications (medical, aerospace, military) where connector failures are unacceptable. It provides optimal balance of component support and flexible routing while reducing assembly complexity.

Q3: What is the minimum bend radius for flexible circuits?

A3: Per IPC-2223, static applications require minimum 2× substrate thickness; dynamic applications need 5-10× thickness. For 50μm polyimide, this translates to 0.1mm static bend radius and 0.25-0.5mm dynamic radius.

Q4: How do material selections impact performance?

A4: RA copper offers 25-30% elongation for 1,000,000+ bending cycles vs. ED copper’s 10-15% elongation for 10,000-100,000 cycles. Polyimide provides -40°C to 150°C temperature resistance vs. polyester’s 105°C maximum, directly impacting application suitability.

If you need professional flexible circuit board design support or quotation, our team provides free DFM check and fast turnaround.
