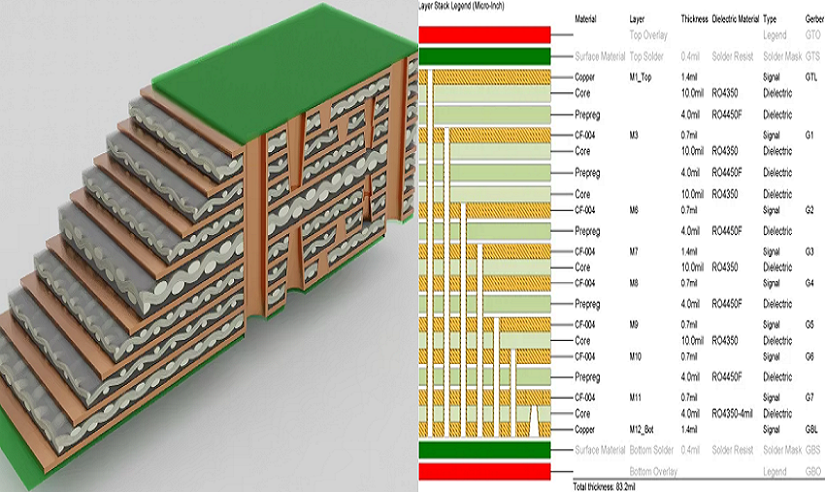

High Speed PCB Layer Stackup: Design Guide & Examples

High speed pcb layer stackup design is the foundation of signal integrity, power delivery, and EMI control, requiring precise symmetry, layer arrangement, and material selection. This guide details factory-proven guidelines, actionable parameters, and real-world examples tailored to hdi pcb, Low Loss PCB, and ultra low loss pcb applications.

Learn more about : What Is High-Speed PCB? A Comprehensive Guide

High Speed PCB Stackup Design: Core Concepts

Definition & Critical Role

• A layer stackup refers to the ordered arrangement of signal, power, and ground layers separated by dielectric materials, defining the PCB’s electrical and mechanical properties.
• Critical threshold: For signals ≥1Gbps, stackup directly impacts impedance control (±5% tolerance per IPC-2221) and crosstalk (-35dB target).
• High-speed mandate: Stackup must be finalized before routing to ensure controlled impedance, solid return paths, and minimal EMI (IPC-6012 Class 3).

Impact on Performance Metrics

• Signal integrity: Proper stackup reduces insertion loss by 30% (ultra low loss pcb target: ≤0.2dB/inch @20GHz).
• Power integrity: Adjacent power/ground planes provide 32.7pF/in² capacitance (FR-4, 0.2mm spacing) for noise suppression.
• Mechanical stability: Symmetric stackup limits warpage to ≤0.3mm/m (critical for hdi pcb sequential lamination).

Learn more about: High-Speed PCB Materials: A Complete Comparison Guide

Guidelines for High Speed Stackups

Symmetry & Layer Arrangement

• Symmetry rule: Mirror inner layers around the center (e.g., 12-layer: Signal-GND-Power-Signal-Signal-Power-GND-Signal) to prevent warpage.
• Layer count: Minimum 4 layers for high speed pcb; 8+ layers for hdi pcb (1+N+1 stackup) to support dense routing.
• Lamination cycles: ≤3 sequential lamination cycles for hdi pcb to avoid layer separation (IPC-6016).

Avoid Adjacent Signals & Solid Ground Planes

• Signal layer separation: No adjacent signal layers—separate with ground/power planes to reduce crosstalk by 40%.
• Ground plane requirements: Solid planes with ≤50mil gaps; stitching vias (1mm pitch) to connect split planes.
• hdi pcb specific: Dedicated ground layers in 2+N+2 stackup to provide low-impedance return paths for high-frequency signals.

Learn more about: 10 Best Practices for High-Speed PCB Routing

Controlled Impedance Integration

• Impedance targets: 50Ω (single-ended, ±5%) and 90–100Ω (differential, ±5%) per IPC-2221.
• Trace geometry: 4mil width for 50Ω microstrip (0.4mm FR-4, h=0.2mm); 4mil width + 5mil spacing for 100Ω differential pairs.
• Material correlation: ultra low loss pcb (Rogers RO4350B) requires dielectric thickness ≤0.1mm for stable impedance at ≥25Gbps.

Learn more about: Controlled Impedance in High-Speed PCB: Full Tutorial

Typical 6-Layer Stackup Example

Stackup Configuration (High Speed PCB)

Layer	Type	Material	Thickness	Key Function
L1	Signal (Microstrip)	Low Loss PCB (FR408HR)	0.035mm (1oz copper)	High-speed single-ended signals (50Ω)
L2	Ground Plane	FR408HR	0.035mm (1oz copper)	Return path for L1 signals
L3	Signal (Stripline)	FR408HR	0.035mm (1oz copper)	Differential pairs (100Ω)
L4	Power Plane (3.3V)	FR408HR	0.035mm (1oz copper)	Power delivery + return path for L3
L5	Signal (Stripline)	FR408HR	0.035mm (1oz copper)	High-speed data lines
L6	Ground Plane	FR408HR	0.035mm (1oz copper)	Return path for L5 + EMI shielding

• Dielectric thickness: 0.15mm between signal/ground layers; 0.2mm between power/signal layers.
• Total board thickness: 1.6mm (standard) with ±0.1mm tolerance (IPC-6012).

Considerations for 6-Layer Design

• Impedance control: L1 (microstrip) 50Ω ±5%; L3/L5 (stripline) 100Ω ±5%.
• EMI mitigation: Ground planes cover 100% of board area to reduce radiated emissions.
• Manufacturing compatibility: Trace width/spacing ≥4mil/4mil (IPC-2221) for standard fabrication.

Material Selection for High Speed Stackups

Material Categories & Performance

• Low Loss PCB (FR408HR): Df=0.009 @10GHz, supports 5–25Gbps, cost-effective for mid-speed applications.
• ultra low loss pcb (Rogers RO4350B): Df=0.0037 @10GHz, enables ≥25Gbps with 40% lower insertion loss.
• hdi pcb material: Low CTE (X/Y ≤16ppm/°C) to withstand sequential lamination (e.g., Isola I-Speed).

Material Comparison & Selection Criteria

Material Type	Df (@10GHz)	Supported Data Rate	CTE (X/Y ppm/°C)	Best For
Standard FR-4	0.018	≤5Gbps	18–20	Low-speed non-critical designs
Low Loss PCB (FR408HR)	0.009	5–25Gbps	16–18	Consumer electronics, 5G modules
ultra low loss pcb (RO4350B)	0.0037	≥25Gbps	14–16	Data centers, aerospace, 400G Ethernet
hdi pcb (Isola I-Speed)	0.006	10–30Gbps	15–17	Dense layouts (0.5mm BGA pitch)

Interplane Capacitance & Via Usage

Interplane Capacitance Optimization

• Calculation: C = (εr × ε0 × A) / d — e.g., 10cm×10cm FR-4 plane (εr=4.0, d=0.2mm) = 177pF.
• Target: ≥100pF for power/ground plane pairs to suppress noise up to 100MHz.
• ultra low loss pcb adjustment: Lower εr (3.5) requires smaller plane spacing (0.1mm) to maintain capacitance.

Via Usage Guidelines

• Through-hole vias: 0.3mm diameter, anti-pad diameter=0.6mm (IPC-6016) for signal layers.
• Microvias (hdi pcb): 0.1–0.15mm diameter, aspect ratio ≤1:1 for stacked vias.
• Power vias: 0.4mm diameter, 1mm pitch, with 2oz copper to handle 5A current (IPC-2221).

Manufacturer Collaboration & Quality Control

Pre-Production Collaboration

• Stackup review: Provide detailed layer stackup file (Gerber) with dielectric thickness, copper weight, and impedance targets.
• Material validation: Confirm fabricator’s capability to source ultra low loss pcb (lead time 2–3 weeks).
• DFM check: Verify trace width/spacing, via size, and plane clearance meet manufacturing limits (±0.5mil for traces).

Quality Control Protocols

• Impedance testing: TDR measurements on coupons (100mm length) with ±3% tolerance for ultra low loss pcb.
• Thermal cycling: 1000 cycles (-40°C~125°C) to confirm no layer separation (IPC-TM-650 2.6.7.2).
• X-ray inspection: Verify via alignment and plane continuity (≥95% coverage).

Key Comparisons

Stackup Feature	Standard FR-4 (≤5Gbps)	Low Loss PCB (5–25Gbps)	ultra low loss pcb (≥25Gbps)
Dielectric Thickness	0.2–0.3mm	0.15–0.2mm	0.1–0.15mm
Impedance Tolerance	±10%	±5%	±3%
Insertion Loss (@20GHz)	0.4dB/inch	0.3dB/inch	0.2dB/inch
Cost (Relative)	1x	2.5x	7x

Symmetry Compliance	Warpage (mm/m)	EMI Emissions (dBμV/m)	Manufacturing Yield
Symmetric Stackup	≤0.3	≤30	97%
Asymmetric Stackup	≥0.8	≥38	82%

Case Study: 12-Layer HDI Ultra Low Loss PCB

Project Specifications

• Layers: 12 (4+4+4 stackup), data rate: 50Gbps (NRZ), material: Rogers RO4350B (Df=0.0037 @10GHz).
• Stackup: Signal-GND-Power-Signal-Signal-Power-GND-Signal-Signal-Power-GND-Signal.
• hdi pcb features: Stacked microvias (0.12mm), sequential lamination (3 cycles).

Issues Encountered

1. Warpage (0.9mm/m) due to asymmetric layer arrangement.
2. Impedance deviation (+8%) from incorrect dielectric thickness (0.18mm vs. 0.1mm).
3. Crosstalk (+16dB) between adjacent signal layers (no ground plane separation).

Improvements Implemented

1. Restacked to symmetric configuration (mirror layers around center) → warpage ≤0.25mm/m.
2. Adjusted dielectric thickness to 0.1mm → impedance tolerance ±3%.
3. Added dedicated ground planes between all signal layers → crosstalk ≤-35dB.

Results

• Signal integrity: Eye height=0.4Vpp, jitter=32ps (PCIe 5.0 compliant).
• Manufacturing yield: 97.4% (up from 81% initial run).
• EMI emissions: 27dBμV/m (CISPR 22 Class B compliant).

Case Study Aspect	Details / Parameters
Project Specifications	• Layers: 12 (4+4+4 stackup) • Data rate: 50Gbps (NRZ) • Material: Rogers RO4350B (Df=0.0037 @10GHz) • Stackup: Signal-GND-Power-Signal-Signal-Power-GND-Signal-Signal-Power-GND-Signal • HDI PCB: Stacked microvias (0.12mm), sequential lamination (3 cycles)
Issues Encountered	• Warpage (0.9mm/m): Asymmetric layer arrangement • Impedance deviation (+8%): Incorrect dielectric thickness (0.18mm vs. 0.1mm) • Crosstalk (+16dB): Adjacent signal layers (no ground plane separation)
Improvements Implemented	• Restacked to symmetric configuration (mirror layers around center) • Adjusted dielectric thickness to 0.1mm (impedance tolerance ±3%) • Added dedicated ground planes between all signal layers
Results	• Signal integrity: Eye height=0.4Vpp, jitter=32ps (PCIe 5.0 compliant) • Manufacturing yield: 97.4% (up from 81% initial run) • EMI emissions: 27dBμV/m (CISPR 22 Class B compliant) • Warpage: ≤0.25mm/m

Common Design Errors

1. Asymmetric Stackup: Causes warpage (≥0.8mm/m) → requires rework (cost +$0.70/board).
2. Adjacent Signal Layers: No ground plane separation increases crosstalk by 15x → full redesign needed.
3. Incorrect Dielectric Thickness: 0.2mm instead of 0.1mm for ultra low loss pcb → impedance deviation (+10%).
4. Inadequate Plane Clearance: Vias too close to planes (≤5mil) → short circuit risk (yield loss 12%).

FAQ

Q1: What’s the difference between Low Loss PCB and ultra low loss pcb stackups?

A1: Low Loss PCB (Df=0.004–0.009 @10GHz) uses 0.15–0.2mm dielectric for 5–25Gbps; ultra low loss pcb (Df≤0.004) uses 0.1–0.15mm dielectric for ≥25Gbps, with tighter impedance tolerance (±3% vs. ±5%).

Q2: How to design a stackup for hdi pcb (0.5mm BGA pitch)?

A2: Use 8+ layers (2+N+2 stackup) with stacked microvias (0.1mm). Separate signal layers with ground planes, maintain 0.1mm dielectric thickness, and ensure symmetric arrangement to control warpage.

Q3: What layer count is needed for 50Gbps high speed pcb?

A3: Minimum 12 layers (ultra low loss pcb) with dedicated ground/power planes, stripline routing for differential pairs, and 0.1mm dielectric thickness to meet insertion loss (≤0.2dB/inch @20GHz) requirements.

Q4: How does stackup affect EMI in high speed pcb?

A4: Solid ground planes (100% coverage) and signal/ground layer pairing reduce EMI by 30%. Symmetric stackup minimizes warpage, preventing gaps that amplify radiation. Adjacent power/ground planes provide capacitance for noise suppression.
