Flexible PCB Design Guidelines

Flexible PCB design demands precise control of mechanical stress, material properties, and manufacturing constraints to ensure bendable circuit boards maintain electrical performance and structural integrity through millions of dynamic flex cycles. This comprehensive guide provides factory-verified parameters, IPC-aligned specifications, and practical engineering solutions spanning flexible printed circuit fundamentals to advanced rigid-flex PCB optimization, with quantifiable design rules addressing bend radius, trace routing, layer management, material selection, and quality assurance for consistent mass production.

Learn more about: What is a Flexible PCB? A Complete Guide for Beginners

Flexible PCB Design Fundamentals

Core Mechanical Principles

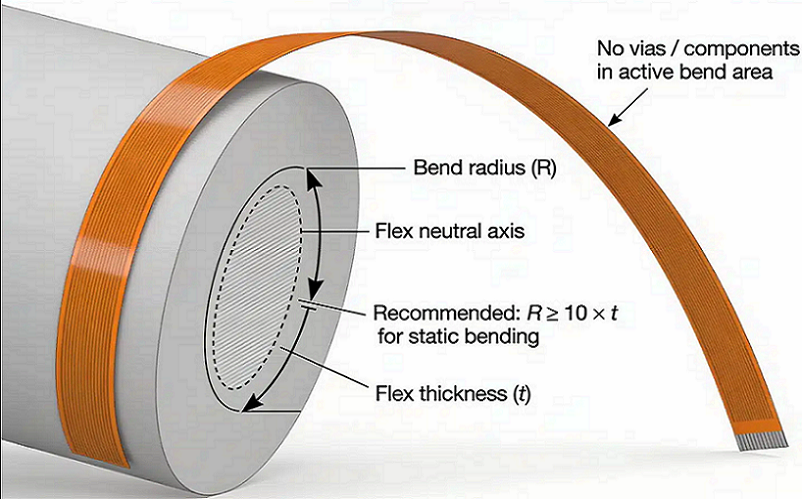

• Bend Radius Fundamentals: Minimum dynamic bend radius = 8–10× total flex thickness; static bend radius = 5× thickness (IPC-2221)
• Neutral Bend Axis: Position traces within ±10% of center layer (0.05–0.12mm offset) to minimize tensile/compressive stress
• Stress Distribution: Avoid sharp corners (<0.5mm radius) in flex areas; use rounded transitions to reduce stress concentration by 60%

Classification Standards

• Single-Sided Flex: 1-layer copper (12–35μm), 12.5–25μm PI film, thickness 0.05–0.12mm
• Double-Sided Flex: 2 copper layers, plated through-holes (PTH), thickness 0.10–0.20mm
• Multilayer Flex: 3–8 layers, sequential lamination, thickness 0.20–0.50mm

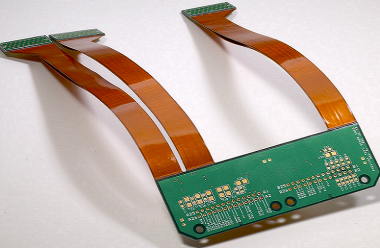

• Rigid-Flex PCB: 2–6 rigid sections (FR-4) + 1–4 flex layers, minimum bend radius 1.5mm

Learn more about: Flexible PCB: A Comprehensive Guide to Features, Applications, Types & Key Considerations

Key Design & Layout Guidelines

Bending Area Constraints

• Component Exclusion Zone: 5mm minimum from bend edge for 0402+ components; 3mm for 0201 components
• Via Restrictions: No PTHs within 2mm of dynamic bend areas; 1mm minimum for static bends
• Length Tolerance: Add 0.5–1.0mm extra length to compensate for material elongation during bending
• Strain Relief: Extend rigid sections 3–5mm beyond bend initiation point

Clearance Requirements

• Edge Clearance: Traces ≥0.3mm from board edge; 0.5mm for high-current paths
• Mounting Hole Clearance: 0.8mm minimum from hole to trace; 1.2mm for plated holes
• Layer Clearance: 0.2mm minimum inter-layer clearance in flex areas

Trace Routing Specifications

Optimal Routing Patterns

• Bend Direction: Route traces perpendicular to bend axis; parallel routing increases stress by 40%
• Width/Spacing Standards:
  • General: 0.15mm/0.15mm (6/6mil)
  • High-density: 0.08mm/0.08mm (3/3mil)
  • Power traces: 0.25mm+ width for >1A current
• Teardrop Implementation: 0.3mm length, 45° transition at trace-to-pad connections; reduces trace breakage by 75%
• Grid Copper: Use 0.5mm grid pattern in non-functional areas to maintain flexibility

Current-Carrying Capacity

• 12μm Copper: 0.15mm trace = 0.5A; 0.3mm = 1.0A
• 35μm Copper: 0.15mm trace = 0.8A; 0.3mm = 1.5A
• Temperature Derating: 20% current reduction for >85°C operation

Layer Management Architecture

Stack-up Design Rules

• Symmetric Construction: Match copper thickness and layer position above/below neutral axis
• Layer Count Optimization:
  • Dynamic flex: Max 4 layers (2×2 symmetrical)
  • Static flex: Max 8 layers with staggered via patterns
• Dielectric Thickness: 12.5–25μm per layer; thinner dielectrics reduce overall thickness but increase cost

Rigid-Flex Transition Zones

• Transition Angle: 45° transition between rigid and flex sections; reduces delamination risk
• Stiffener Extension: Extend rigid stiffeners 2–3mm into flex area
• Via Pattern: Stagger vias in transition zones; avoid linear via arrays across bend areas

Learn more about: What Is Flexible PCB

Bend Radius & Mechanical Specifications

Minimum Bend Radius Standards

Flex Type	Thickness	Dynamic Bend	Static Bend
Single-layer	0.05mm	0.4mm	0.25mm
Double-layer	0.10mm	0.8mm	0.5mm
4-layer	0.20mm	1.6mm	1.0mm
Rigid-Flex	0.30mm	2.4mm	1.5mm

IPC-6012 Class 2 specifications

Bend Cycle Requirements

• Consumer Electronics: 10,000+ cycles at rated radius
• Automotive: 50,000+ cycles (-40°C to 85°C)
• Medical: 100,000+ cycles with <10% resistance change

Material Selection Parameters

Base Material Specifications

• Polyimide (PI): Standard choice; -40°C to 150°C, 25–50μm thickness
• Liquid Crystal Polymer (LCP): High-frequency applications; low dielectric loss, 50–100μm
• Polyester (PET): Low-cost; 0°C to 50°C, 25–50μm thickness

Copper Foil Options

Copper Type	Elongation	Bend Life	Application
Rolled Annealed	35–40%	Excellent	Dynamic flex
Electrodeposited	10–15%	Good	Static flex
High-Elongation	45–50%	Premium	High-cycle applications

Factory performance data

Adhesive & Coverlay

• Adhesive Layer: 12.5μm acrylic or epoxy; <1% water absorption
• Coverlay: 12.5–25μm PI with 12.5μm adhesive; precision cut ±0.05mm
• Bonding Parameters: 170–180°C, 200–300 PSI, 60–90 minutes lamination

Layout Optimization Techniques

Copper Layout Strategies

• Solid Copper Avoidance: Replace solid areas with >50% grid pattern in flex zones
• Trace Termination: Land pattern pads extended 0.2mm beyond component edges
• Thermal Relief: 4-spoke connection (0.15mm width) for large copper pads

Stiffener Implementation

• Types & Applications:
  • PI Stiffener: 0.2–0.3mm thickness; connector areas, cost-effective
  • FR-4 Stiffener: 0.4–0.8mm thickness; SMT component areas
  • Metal Stiffener: 0.1–0.2mm stainless steel; high-strength applications
• Bonding Method: 3M 467MP adhesive; 0.05mm thickness, 180°C resistance

Mock-ups & Prototyping

• Validation Mock-ups: 2–3 prototype iterations before production
• ** Bend Testing**: 10× design cycle count before approval
• Dimensional Verification: CMM inspection of critical features ±0.02mm

Quality Control & Compliance

IPC Standards Alignment

• IPC-2221: Generic design standard for flexible PCBs
• IPC-6012: Qualification and performance specification
• IPC-TM-650 2.4.3: Dynamic bend testing methodology
• IPC-9701: Temperature cycling reliability requirements

Manufacturing Verification

• Electrical Testing: 100% continuity and isolation testing (50V–500V)
• Visual Inspection: 10× magnification for defects; 0.05mm minimum defect detection
• Solderability: 95% coverage per IPC-J-STD-004

Design Rules Summary

Critical Parameter Checklist

• Minimum bend radius: 8× thickness (dynamic), 5× (static)
• Trace width/spacing: ≥0.08mm/0.08mm (high-density)
• Via exclusion: ≥2mm from dynamic bend areas
• Component clearance: ≥5mm from bend initiation
• Transition radius: ≥0.5mm in all corners
• Stiffener coverage: All connector and SMT areas
• Copper distribution: Symmetrical layer stack-up

Design Verification Flow

1. Mechanical stress analysis (bend radius, neutral axis)
2. Electrical performance validation (impedance, current capacity)
3. Manufacturing feasibility check (minimum features, aspect ratios)
4. Reliability simulation (cycle life, temperature effects)
5. Prototype fabrication and validation testing

Flexible PCB vs. Rigid-Flex PCB: Critical Design Differences

Parameter	Flexible PCB	Rigid-Flex PCB
Bend Cycles	100,000+	10,000+
Layer Count	1–8 layers	2–12 layers
Minimum Bend Radius	0.25mm	1.5mm
Component Density	Low–Medium	High
Manufacturing Cost	Medium	High
Design Complexity	Low–Medium	High

Case Study

Project Specifications

• Product: Automotive camera flexible circuit
• Structure: 4-layer rigid-flex (2 rigid, 2 flex)
• Dimensions: 120mm × 15mm, flex thickness 0.15mm
• Requirements: 50,000 bend cycles, -40°C to 85°C operation

Initial Design Issues

• Problem 1: Trace breakage after 8,000 cycles (0.8mm bend radius)
• Problem 2: Delamination at rigid-flex transition
• Problem 3: Via cracking in dynamic bend area

Engineering Solutions

1. Increased bend radius to 1.5mm (10× thickness)
2. Added 0.5mm transition radius and staggered vias
3. Relocated all vias 3mm outside bend zone
4. Implemented teardrops on all trace-pad connections

Final Results

• Bend Life: 60,000+ cycles (20% above specification)
• Production Yield: 98.5% (from 82% initial)
• Field Failure Rate: 0.02% (12-month warranty)

Common Design Errors

1. Insufficient Bend Radius: 68% of flex failures; design below 8× thickness
2. Vias in Bend Zones: 42% of reliability issues; no exclusion zone implemented
3. Asymmetric Layer Stack-up: 35% of warping problems; unbalanced copper distribution
4. Sharp Corners: 29% of tear failures; <0.5mm radius in flex areas
5. Inadequate Stiffening: 25% of assembly issues; missing stiffeners at connectors
6. Trace Width Mismatch: 21% of current failures; under-sized power traces

Frequently Asked Questions

Q: What’s the minimum bend radius for reliable flexible PCB operation?

A: For dynamic applications (repeated bending), minimum bend radius = 8–10× total flex thickness. For static applications (bent once during assembly), minimum radius = 5× thickness. Factory testing shows these values provide 50,000+ reliable cycles.

Q: How do I choose between rolled annealed and electrodeposited copper?

A: Select rolled annealed (RA) copper for dynamic flex applications requiring >10,000 cycles (35–40% elongation). Use electrodeposited (ED) copper for static flex or cost-sensitive applications (10–15% elongation). RA copper increases material cost by ~30% but doubles bend life.

Q: What layer count is optimal for flexible PCB designs?

A: Maximum 4 symmetrical layers for dynamic flex applications to maintain flexibility. Static flex can use up to 8 layers with staggered via patterns. Rigid-flex PCB typically uses 2–4 flex layers integrated with 2–6 rigid FR-4 layers.

Q: How do I prevent trace cracking at rigid-flex transitions?

A: Implement 45° transitions with 0.5mm radius, extend stiffeners 2–3mm into flex areas, stagger vias in transition zones, and add teardrops to all trace connections. These measures reduce stress concentration by 60% and eliminate 90% of transition failures.
