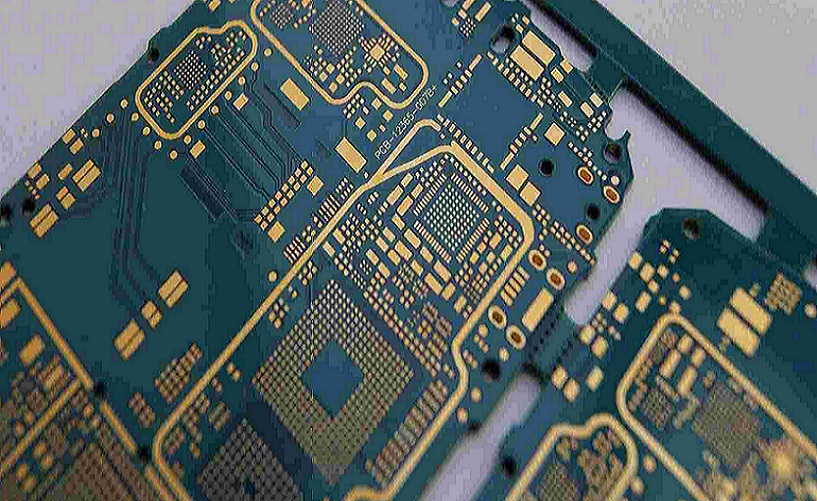

HDI PCB Design Guidelines for Engineers

HDI PCB design should start with stack-up planning, microvia selection, fine-pitch BGA breakout, material choice, controlled impedance, and DFM review before layout begins. A reliable high density interconnect board is not created by simply shrinking trace width. It requires correct microvia aspect ratio, via-in-pad rules, staggered or stacked via decisions, dielectric thickness control, sequential lamination planning, routing discipline, and early communication with the hdi pcb manufacturer. For engineers, the goal is to move from hdi pcb prototype to repeatable hdi pcb fabrication without microvia cracking, BGA solder defects, impedance drift, or poor production yield.

HDI PCB Design Basics

Core Design Targets

HDI PCB design is used when conventional multilayer routing cannot support package density, product size, signal speed, or component placement. Typical triggers include 0.5 mm or 0.4 mm BGA packages, dense memory routing, compact IoT devices, GPU or AI modules, medical electronics, and high-speed embedded systems.

Practical design targets:

Design Item	Standard HDI Target	Advanced HDI Target	Engineering Value
Trace / space	75/75 microns	50/50 microns	Supports dense routing under fine-pitch BGA
Microvia diameter	75-125 microns	50-75 microns	Reduces routing congestion and via stub
Microvia aspect ratio	0.6:1 to 1:1	Keep below 1:1	Improves plating reliability
Buildup dielectric	50-80 microns	25-50 microns	Enables laser microvia formation
BGA pitch	0.65 mm to 0.5 mm	0.4 mm and below	Drives via-in-pad and HDI stackup choice
Impedance	50, 85, 90, 100 ohm	Project-specific	Supports high-speed routing

IPC-2226 is the key IPC design standard for high density interconnect printed boards, while IPC-2221 provides general printed board design requirements. IPC-6012 supports rigid printed board qualification and performance requirements, including multilayer boards with blind and buried vias.

PCB vs PCA Context

A PCB is the bare printed circuit board. A PCA is the assembled circuit board after components, solder joints, labels, firmware, coating, inspection records, and functional test are added.

This distinction matters because an hdi pcb may pass bare-board E-test but still fail as a PCA. Common PCA-level failures include:

• BGA voiding caused by poor via-in-pad filling
• Intermittent high-speed links caused by reference-plane discontinuity
• Solder joint stress caused by board warpage
• Power instability caused by weak via arrays
• Poor rework yield caused by dense component placement

Stack-Up Planning

Layer Count Strategy

Stack-up planning should happen before dense placement and BGA breakout. The stackup defines routing capacity, impedance, power integrity, thermal behavior, lamination cycles, and fabrication cost.

Common HDI structures:

HDI Structure	Typical Use	Lamination Risk	Cost Level
1+N+1	0.65 mm BGA, compact modules	Low to medium	Lower
2+N+2	0.5 mm BGA, dense routing	Medium	Higher
3+N+3	Processor, GPU, AI accelerator boards	High	High
ELIC	Every-layer access under dense packages	Very high	Very high
Ultra HDI	Sub-30 micron routing, advanced modules	Very high	Highest

A 1+N+1 stackup may be enough when the board uses one microvia layer on each side. A 2+N+2 or 3+N+3 stackup becomes useful when the design needs deeper package breakout and more routing channels.

Practical Stackup Rules

Factory-centered stackup rules:

• Keep buildup dielectric between 50 and 80 microns for common HDI microvias.
• Keep microvia aspect ratio at or below 1:1.
• Use symmetrical stackups to reduce warpage.
• Keep high-speed layers next to continuous reference planes.
• Avoid placing high-current power neck-downs inside dense BGA escape zones.
• Use impedance coupons that match the real stackup, not a simplified drawing.
• Confirm lamination cycles before routing stacked microvias.

Stackup is not only an electrical decision. It is a manufacturing decision. Every extra sequential lamination adds registration shift, process time, yield risk, and cost.

Via Technology

Microvias and Aspect Ratio

Microvias are laser-drilled blind vias used to connect adjacent HDI layers. They save routing area and reduce via stub compared with mechanical through vias. A common production range is 75-125 microns diameter, with advanced designs moving toward 50-75 microns when the supplier can support the process window.

Microvia design controls:

Microvia Item	Practical Range	Factory Reason
Diameter	75-125 microns	Stable laser drilling and plating
Advanced diameter	50-75 microns	Higher density, tighter process control
Dielectric depth	50-80 microns	Supports aspect ratio control
Aspect ratio	0.6:1 to 1:1	Reduces plating and fatigue risk
Capture pad	200-300 microns typical	Allows registration tolerance
Inspection	Microsection and X-ray sampling	Verifies plating and fill quality

A microvia with excessive depth relative to diameter can plate poorly. The design may pass electrical test at room temperature but fail after thermal cycling because the copper structure is mechanically weak.

Via-in-Pad

Via-in-pad places a via directly inside a component pad. Via-in-pad plated over, also called VIPPO, fills the via, plates over the top, and creates a flat solderable surface.

Via-in-pad is useful when:

• BGA pitch is 0.5 mm or 0.4 mm.
• Dogbone fanout has no routing space.
• Decoupling capacitors need short power paths.
• High-speed signals need short layer transitions.
• Board area is tightly constrained.

VIPPO factory controls:

VIPPO Control	Practical Target	Defect Prevented
Via diameter	75-125 microns	Poor filling or weak plating
Surface dimple	Below 10-15 microns	BGA solder voiding
Copper cap	Continuous cap plating	Solder wicking
Planarity	Controlled before solder mask	Uneven BGA solder height
Inspection	X-ray and microsection	Hidden fill defects

Via-in-pad should not be used everywhere. It adds filling, plating, planarization, inspection, and cost. Use it where routing density or electrical performance requires it.

Staggered vs Stacked

Item	Staggered Microvias	Stacked Microvias
Routing density	Medium to high	Highest
Process demand	Easier plating and filling	Requires reliable copper fill
Cost	Lower	Higher
Reliability margin	Stronger for many production builds	Requires strict validation
Best use	Cost-sensitive HDI routing	Extreme BGA and ELIC structures

Staggered microvias are often better for production yield. Stacked microvias save space but need copper filling, planarization, and stronger microsection control.

Routing and Layout

Trace Widths and Spacing

Trace width should be selected by density, copper thickness, impedance, current, etch capability, and yield target.

Practical routing ranges:

Routing Class	Trace / Space	Typical Use
Standard multilayer	100/100 microns	General digital routing
Standard HDI	75/75 microns	Dense BGA fanout
Advanced HDI	50/50 microns	Processor and compact modules
Ultra HDI	Below 30/30 microns	Substrate-like fanout and advanced packaging
Experimental / specialized	Near 20/20 microns	Requires supplier qualification

Do not reduce trace width only to clear layout congestion. Fine lines require thinner copper, tighter imaging, better etch control, and stronger AOI capability.

Fine Pitch BGA

Fine pitch BGA routing is one of the main reasons to use hdi circuit boards.

Typical fanout logic:

• 0.8 mm BGA: often routable with standard vias or limited HDI.
• 0.65 mm BGA: may need microvias and 75/75 micron routing.
• 0.5 mm BGA: often needs via-in-pad or microvia fanout.
• 0.4 mm BGA: usually needs HDI stackup and VIPPO.
• Below 0.4 mm: may require Ultra HDI, ELIC, or substrate-like structures.

For high-speed BGAs, escape routing must preserve return paths. A short route with poor reference continuity can perform worse than a slightly longer route with clean reference planes.

Routing Strategy

A good HDI routing strategy follows a fixed order:

1. Define BGA escape method.
2. Lock stackup and via structure.
3. Assign high-speed layers and reference planes.
4. Route power rails and decoupling first around the package.
5. Route critical high-speed nets with controlled impedance.
6. Keep low-speed and test routes away from high-speed escape lanes.
7. Review via transitions and return paths.
8. Run DFM before final output.

Factory experience shows that late HDI conversion usually creates cost and reliability problems. The stackup must be part of the first layout plan.

Material Selection

HDI Material Rules

Material selection affects laser drilling, impedance, thermal cycling, warpage, soldering, and high-speed loss.

Common material decisions:

• High Tg FR-4 for industrial and general HDI boards
• Low Dk / low Df laminate for high-speed channels
• Thin dielectric buildup films for microvias
• Low-profile copper for lower conductor loss
• 9-18 micron copper for fine routing
• 35 micron copper for power zones where fine-line etching is not needed
• ENIG or immersion silver for fine-pitch assembly

Material Item	Practical Range	Design Value
Tg	170 C or higher for demanding builds	Better reflow and thermal cycling margin
Dk	3.0-3.8 for many high-speed materials	Controls impedance and delay
Df	Below 0.005 for high-speed links	Reduces insertion loss
Copper	9-18 microns for fine lines	Improves etching precision
Build-up dielectric	25-80 microns	Supports microvia design
Finish	ENIG common for fine pitch	Stable solderability and planarity

Material and Cost Balance

The highest-cost material is not always the best engineering choice. Use low-loss material where signal loss demands it. Use standard high-Tg material where routing is low speed or power focused.

Material mistakes that increase risk:

• Mixing materials without CTE review
• Using thick copper in 50/50 micron routing areas
• Selecting low-loss material without confirming stock
• Changing laminate after prototype approval
• Omitting impedance coupons after material change

Ultra HDI Design

Ultra HDI Parameters

Ultra High-Density Interconnect PCB design pushes below standard HDI geometry. It becomes relevant when package pitch, layer count, or routing density exceeds normal HDI limits.

Ultra HDI design parameters:

Feature	Standard HDI	Ultra HDI
Trace / space	75/75 to 50/50 microns	Below 30/30 microns
Microvia diameter	75-100 microns	50-75 microns
Dielectric thickness	50-80 microns	25-50 microns
Fabrication method	Laser drill and subtractive etch	SAP, mSAP-like, or advanced fine-line control
Main use	Dense BGA escape	Chiplet, advanced AI, medical, aerospace, miniaturized electronics

Semi-additive process, or SAP, starts from very thin copper and builds conductor patterns with finer imaging and plating control. It is used when conventional subtractive etching cannot maintain required fine line and spacing.

Layer Count Reduction

Ultra HDI can reduce layer count when finer routing allows more signals per layer. However, it can also increase cost if the design pushes beyond the hdi pcb manufacturer’s stable capability.

Possible benefits:

• More routes under dense packages
• Reduced board outline
• Shorter interconnect path
• Lower via stub
• Higher component density
• Potential layer-count reduction
• Better fit for advanced modules

The design team should compare a standard 2+N+2 HDI stackup against an Ultra HDI option before choosing. The lower layer count may not save money if fabrication yield drops.

Design for Manufacturability

DFM Review Items

Design for Manufacturability should happen before routing is complete, not after Gerber export.

DFM review checklist:

• Stackup and sequential lamination count
• Microvia diameter, depth, and aspect ratio
• Staggered vs stacked microvia plan
• Via-in-pad filling and cap requirements
• Trace / space by copper thickness
• BGA escape feasibility
• Solder mask registration
• Impedance coupon structure
• Material availability
• Board thickness and warpage risk
• Test pad and fixture access
• Panelization and coupon placement

Early Collaboration

Early collaboration with the hdi pcb manufacturer reduces redesign. It should happen at three points:

1. Before schematic release
   Confirm package pitch, board size, layer target, and PCB type.
2. Before layout routing
   Confirm stackup, via technology, material, impedance, and DFM limits.
3. Before prototype release
   Review output files, coupons, solder mask, VIPPO, test plan, and inspection requirements.

A design that reaches CAM with wrong microvia assumptions can lose one to three weeks in redesign and supplier EQ cycles.

Two Key Comparisons

HDI PCB vs Standard PCB

Item	Standard PCB	HDI PCB
Via type	Mechanical through vias	Microvias, blind vias, buried vias
Routing density	Moderate	High
BGA pitch support	Better above 0.8 mm	Better at 0.5 mm and 0.4 mm
Lamination	Usually single lamination	Sequential lamination common
Cost	Lower	Higher
Best use	General electronics	Compact, high-speed, dense electronics

A standard PCB is better when board area is available and packages are not dense. HDI is better when routing density, package pitch, or product size becomes the limiting factor.

HDI vs Ultra HDI

Item	HDI	Ultra HDI
Trace / space	75/75 to 50/50 microns	Below 30/30 microns
Via size	75-125 microns	50-75 microns
Process	Laser drilling and sequential lamination	SAP or advanced fine-line process
Supplier base	Wider	Narrower
Cost	High	Higher
Best use	Dense BGA and compact products	Ultra-fine pitch and substrate-like routing

Ultra HDI should be selected by package and routing need, not by marketing label.

Real Factory Case

Project Background

A customer developed an hdi pcb prototype for a compact AI vision module. The board used one 0.5 mm pitch processor BGA, LPDDR memory, MIPI camera input, USB 3.0, Gigabit Ethernet, PMIC, oscillator, flash memory, and a board-to-board connector.

Item	Project Data
Board type	HDI PCB prototype
Layer count	8 layers
HDI structure	2+4+2
Board thickness	1.0 mm
Material	High Tg low-loss laminate
Trace / space	75/75 microns standard, 50/50 microns in BGA escape
Microvia	90 microns, copper filled
Via type	Staggered microvia and local VIPPO
Impedance	50 ohm clock, 90 ohm USB, 100 ohm Ethernet
Finish	ENIG
Inspection	AOI, E-test, X-ray, impedance coupon, microsection

Problem and Improvement

The first EVT build used 60 boards. Bare-board electrical test passed, but system testing found USB instability, MIPI image dropout, and BGA solder variation.

Root causes:

• One USB pair crossed a split reference plane.
• Two microvia stacks had unnecessary vertical alignment.
• VIPPO dimple variation reached 16 microns.
• Decoupling capacitors were too far from two processor power pins.
• Solder mask clearance near fine pitch pads was too tight for stable registration.

Corrective actions:

• Re-routed USB over a continuous reference plane.
• Changed two stacked microvia columns to staggered microvias.
• Reduced VIPPO dimple target below 10 microns.
• Moved two 0.1 uF capacitors within 2 mm of critical pins.
• Increased solder mask clearance by 25 microns in the BGA field.
• Added X-ray sampling for every panel.

Metric	EVT Build	Revised Pilot
USB instability	5/60 boards	0/120 boards
MIPI dropout	4/60 boards	0/120 boards
VIPPO dimple range	8-16 microns	Below 10 microns
BGA solder variation	Visible on X-ray	Stable X-ray profile
First-pass system yield	85.0%	97.5%

This case shows why hdi pcb fabrication must connect layout, stackup, via design, impedance, solder mask, assembly, and system test.

Common HDI Mistakes

Layout Mistakes

• Starting BGA routing before stackup approval
• Using stacked microvias where staggered vias are enough
• Routing high-speed pairs across reference-plane splits
• Reducing trace width without recalculating impedance
• Placing decoupling capacitors too far from BGA power pins
• Ignoring return path around microvia transitions
• Missing test pads and programming access

Fabrication Mistakes

• Specifying via-in-pad without fill, cap, and dimple limits
• Using 35 micron copper in 50/50 micron routing zones
• Choosing material without confirming availability
• Omitting microsection coupons
• Using asymmetrical copper distribution
• Treating prototype yield as mass-production proof

Documentation Mistakes

• Missing IPC class requirement
• Missing controlled impedance table
• Missing stackup drawing
• Missing via structure definition
• Missing VIPPO acceptance criteria
• Missing material callout
• Missing test coupon locations

FAQ About HDI PCB Design

Question: What are the most important HDI PCB design guidelines?

Answer: The most important HDI PCB design guidelines are early stackup planning, correct microvia aspect ratio, proper via-in-pad specification, controlled impedance planning, fine-pitch BGA fanout review, material selection, and DFM validation before layout release. These rules reduce fabrication EQ, microvia failure, BGA solder defects, and signal integrity problems.

Question: What is the recommended microvia aspect ratio for HDI PCB?

Answer: A reliable HDI microvia should generally stay at or below 1:1 aspect ratio. Many production designs use 0.6:1 to 0.8:1 for stronger plating margin. The exact value depends on microvia diameter, dielectric thickness, copper plating process, and reliability target.

Question: When should engineers use via-in-pad in HDI PCB?

Answer: Engineers should use via-in-pad when fine-pitch BGA fanout cannot be routed with dogbone routing or when short signal and power transitions are required. Via-in-pad should include filling, cap plating, planarization, dimple limit, X-ray inspection, and solderability control.

Question: How should engineers choose PCB type for HDI projects?

Answer: Engineers should choose PCB type by package pitch, routing density, board area, signal speed, power density, thermal path, flexibility requirement, and production volume. A standard PCB fits larger packages. An hdi pcb fits fine-pitch and compact designs. Ultra HDI fits extreme package density when standard HDI cannot meet fanout or layer-count targets.
