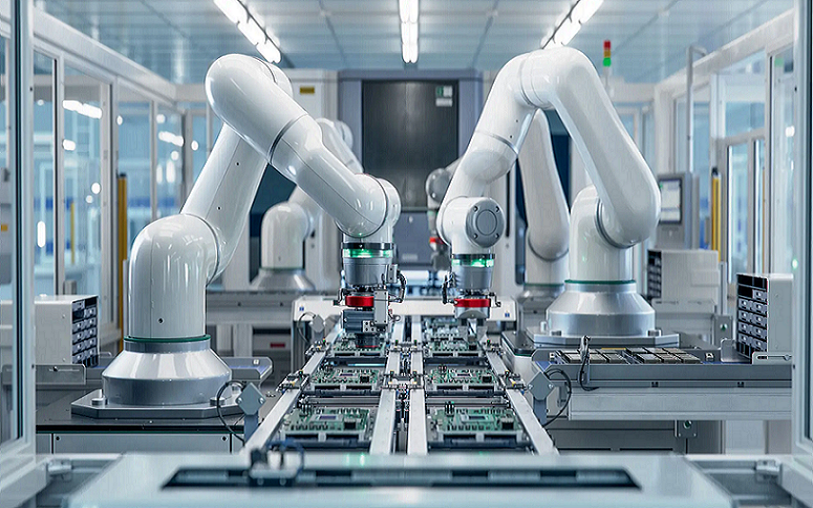

PCB Assembly Services for Engineers

PCB assembly services convert a bare printed circuit board into a tested PCBA by combining solder paste printing, component placement, reflow soldering, through-hole integration, inspection, testing, traceability, and production documentation. For engineers, good printed circuit board assembly is not only “mounting parts.” It is a controlled manufacturing service that checks Gerber files, BOM risk, centroid data, solder paste volume, placement accuracy, reflow profile, THT solder fill, BGA X-ray results, ICT access, functional test coverage, and final acceptance under standards such as IPC J-STD-001 and IPC-A-610. IPC describes J-STD-001 as the industry-consensus standard for soldering processes and materials, while IPC-A-610 is used for post-assembly acceptance of electronic assemblies.

Learn more about: What Is PCB Assembly

Printed Circuit Board Assembly

Service Scope

Printed Circuit Board Assembly, or PCBA, starts after the bare PCB is fabricated. The assembly supplier receives manufacturing files, purchases or receives components, prepares SMT and THT process programs, builds the board, inspects solder joints, and tests the final circuit card assembly.

A complete PCB assembly service normally includes:

• Engineering file review
• BOM and AVL checking
• Component sourcing or receiving
• Solder stencil design
• SMT programming
• Solder paste printing
• Component placement
• Reflow soldering
• Through-hole assembly
• Selective or wave soldering
• AOI, X-ray, ICT, and functional testing
• Cleaning, coating, labeling, and packing when required

PCB, PCBA, and PCA

The terms PCB, PCBA, and PCA are often mixed, but factories treat them differently.

Term	Production Meaning	Engineering Control
PCB	Bare board before components	Copper, drilling, solder mask, surface finish
PCBA	Board after components are assembled	SMT, THT, soldering, inspection, testing
PCA	Printed circuit assembly, often same as PCBA	Functional assembly and test record
Circuit card assembly	Industrial name for an assembled board	Traceability and final quality control
PCB manufacturing and assembly	Full service from fabrication to PCBA	Fabrication, sourcing, assembly, test

IPC-6012 covers qualification and performance requirements for rigid printed boards, so it applies before assembly, while IPC J-STD-001 and IPC-A-610 apply to soldering process and assembled-board acceptance.

PCBA Process

Process Flow

A standard PCBA process follows a controlled sequence. The exact order changes for double-sided SMT, mixed THT, BGA, press-fit, coating, or box-build projects.

Typical flow:

1. Review Gerber, BOM, centroid, stackup, and assembly drawings.
2. Check component availability and package risk.
3. Design and fabricate the SMT stencil.
4. Print solder paste on PCB pads.
5. Inspect paste volume with SPI when required.
6. Place SMT components.
7. Reflow solder the SMT side.
8. Inspect with AOI and X-ray where needed.
9. Insert THT components.
10. Use wave, selective, or manual soldering.
11. Perform ICT, flying probe, or functional testing.
12. Clean, coat, label, and pack the finished PCBA.

Core Process Parameters

Process Step	Typical Parameter	Factory Purpose
Stencil thickness	0.10-0.15 mm common	Controls paste volume
Fine-pitch stencil	0.08-0.10 mm by review	Supports QFN, BGA, 0201 parts
Placement accuracy	±25-50 microns common	Controls fine-pitch alignment
Lead-free reflow peak	235-250 C typical	Melts SAC solder alloy
Time above liquidus	45-90 seconds common	Controls wetting and intermetallic formation
THT hole clearance	Lead diameter + 0.15-0.30 mm	Enables insertion and solder fill
Barrel fill target	Often 75% or higher by class	Supports electrical and mechanical strength

These numbers are common production ranges, not universal limits. The final process window depends on solder alloy, component thermal rating, PCB thickness, copper weight, board finish, package type, and IPC class.

Solder Paste Application

Stencil Printing

Solder paste application is the first major SMT control point. A stencil transfers solder paste to component pads. Paste volume must match pad geometry, aperture design, stencil thickness, surface finish, component package, and reflow behavior.

Key controls:

• Stencil thickness: 0.10-0.15 mm for many SMT boards
• Reduced apertures for QFN thermal pads
• Step stencil for mixed fine-pitch and large connector boards
• Area ratio above about 0.66 for stable paste release
• Paste temperature stabilization before printing
• Paste working life control on the stencil
• SPI for volume, height, offset, and bridge risk

Paste Defect Control

Paste defects often create downstream solder failures. Too little paste causes opens and weak joints. Too much paste causes bridges, solder balls, tombstoning, and BGA voids.

Common paste controls:

• Check stencil underside cleaning interval.
• Keep board support flat during printing.
• Use local support pins under thin PCBs.
• Avoid large uncovered paste apertures under QFN thermal pads.
• Review paste aperture reduction for 0.4 mm and 0.5 mm pitch parts.
• Use SPI alarms for repeated low-volume or high-volume areas.

Component Placement

Pick-and-Place Setup

Component placement uses automated machines to place resistors, capacitors, ICs, connectors, crystals, sensors, LEDs, BGAs, and other SMT parts. The machine uses the centroid file, feeder setup, fiducial recognition, nozzle selection, package libraries, and vision alignment.

Placement inputs:

• Pick-and-place centroid data
• BOM with manufacturer part numbers
• Assembly drawing
• Component rotation convention
• Fiducial locations
• Feeder setup list
• Package height and polarity
• Nozzle and placement pressure settings

Placement Risk Points

Placement defects usually come from data mismatch, wrong rotation, unstable feeders, poor fiducials, or package library errors.

Factory checks should include:

• First article inspection before batch production
• Polarity check for LEDs, diodes, electrolytic capacitors, and ICs
• Rotation check for QFN, BGA, connectors, and modules
• Feeder verification by part number
• Vision-library verification for odd-form parts
• Placement pressure review for fragile components

For small parts such as 0201 and 01005, placement accuracy and paste balance must work together. A perfect placement on uneven paste can still tombstone during reflow.

Reflow Soldering

Thermal Profile

Reflow soldering heats the assembly through preheat, soak, liquidus, peak, and cooling zones. The profile must melt solder without damaging components, warping the board, or creating poor wetting.

Reflow Stage	Typical Lead-Free Range	Process Role
Preheat ramp	1-3 C per second	Reduces thermal shock
Soak zone	150-180 C for 60-120 seconds	Activates flux and equalizes temperature
Time above liquidus	45-90 seconds	Forms solder joints
Peak temperature	235-250 C	Completes lead-free solder melting
Cooling rate	2-4 C per second	Controls grain structure and stress

Reflow Process Control

Reflow cannot use one profile for every board. A 0.8 mm thick sensor board, a 1.6 mm industrial controller, and a 2.4 mm high-current power board need different profiles.

Profile controls:

• Thermocouple measurement on hot and cold spots
• BGA corner temperature check
• Connector body temperature limit
• QFN voiding review
• Heavy copper heat absorption check
• Double-sided reflow component drop risk
• Moisture-sensitive component bake control

Through-Hole Integration

THT Assembly Role

Through-Hole Technology is used when components need stronger mechanical support or higher current capacity than SMT alone can provide. Common THT parts include terminal blocks, relays, transformers, electrolytic capacitors, power inductors, headers, USB shell tabs, and high-current connectors.

THT integration options:

• Manual soldering for prototype or low-volume builds
• Wave soldering for high-volume THT boards
• Selective soldering for mixed SMT and THT assemblies
• Press-fit for backplanes and some high-reliability connectors

THT Production Controls

THT Control	Practical Range	Reason
Hole clearance	Lead diameter + 0.15-0.30 mm	Supports insertion and solder flow
Barrel fill	Often 75% or more by requirement	Improves electrical and mechanical strength
Lead protrusion	Typically 0.5-2.5 mm by assembly rule	Prevents shorts and weak joints
Selective solder dwell	Often 2-5 seconds by joint mass	Controls wetting
Preheat temperature	Process-specific	Reduces thermal shock and improves flux action

THT should be planned during PCB design. If selective solder keepout, pallet clearance, or connector spacing is ignored, assembly cost rises and manual touch-up increases.

Inspection and Testing

Inspection Sequence

Inspection should occur at multiple points, not only at the end of production.

Inspection methods:

• SPI after solder paste printing
• AOI after placement or reflow
• X-ray for BGA, LGA, QFN, and hidden joints
• Visual inspection under IPC-A-610 class
• First article inspection
• Rework verification
• Conformal coating inspection when required

IPC-A-610 is a post-assembly acceptance standard, while IPC J-STD-001 defines soldered assembly process and material requirements; together, they give assembly teams a shared language for workmanship and acceptance.

Electrical and Functional Testing

Test Type	What It Finds	Best Use
Flying probe	Opens, shorts, wrong values	Prototype and low volume
ICT	Shorts, opens, resistance, capacitance, diode checks	Medium and high volume
Boundary scan	Digital interconnect faults	Dense digital assemblies
Functional test	Real product behavior	Final validation
Burn-in	Early-life failures	High-reliability electronics
Thermal test	Temperature-related failures	Industrial, medical, automotive

A PCBA can pass ICT but fail functional testing if power sequencing, firmware loading, RF tuning, clock startup, or thermal behavior is not validated.

Assembly Options

Turnkey PCBA

Turnkey PCBA means the supplier handles PCB fabrication, component procurement, assembly, inspection, testing, and often logistics. It reduces supplier coordination work and improves accountability when fabrication and assembly defects interact.

Turnkey PCBA is useful when:

• The engineering team wants one manufacturing owner.
• Component procurement is complex.
• The project needs fast prototype-to-pilot transfer.
• The board has BGA, fine-pitch ICs, or mixed technology.
• Functional testing and rework feedback must return quickly.

Consigned and Partial Turnkey

Consigned assembly means the customer supplies all components and often the bare PCB. Partial turnkey means the customer supplies some critical parts, while the supplier sources the rest.

Assembly Model	Customer Supplies	Supplier Handles	Best Fit
Turnkey PCBA	Files and approval	PCB, components, assembly, test	Fast engineering and single accountability
Consigned assembly	PCB and all components	Assembly and inspection	Customer-controlled inventory
Partial turnkey	Critical parts or long-lead parts	Remaining sourcing and assembly	Balanced control and convenience
Prototype assembly	Files and small BOM	Small-batch build and review	EVT and design validation
Production assembly	Approved package and test plan	Repeatable volume build	Stable product release

Getting Started

Gerber Files

Gerber files define copper layers, solder mask, silkscreen, paste layer, and board outline. For assembly, the paste layer matters because it controls stencil aperture generation.

Gerber package should include:

• Top and bottom copper
• Inner copper layers
• Solder mask layers
• Paste layers
• Silkscreen layers
• Board outline
• Mechanical details
• Drill drawing
• Fabrication notes

Bill of Materials

The BOM is the purchasing and assembly backbone. A weak BOM creates wrong parts, substitutions, production delay, and test failures.

A useful BOM should include:

• Reference designator
• Quantity
• Manufacturer part number
• Approved alternate parts
• Description
• Package
• Value and tolerance
• Voltage or power rating
• Lifecycle status
• Customer-supplied or supplier-sourced status
• Do-not-populate marks
• Critical component notes

Pick-and-Place Data

Pick-and-place data, also called centroid data, tells the assembly machine where each SMT component goes.

Centroid data should include:

• Reference designator
• X coordinate
• Y coordinate
• Rotation
• Side of board
• Package name
• Polarity note when needed

Rotation mismatch is one of the most common preventable assembly errors. The safest process is to match centroid, assembly drawing, silkscreen, and BOM before first article approval.

Two Key Comparisons

Turnkey vs Consigned PCBA

Item	Turnkey PCBA	Consigned PCBA
Component sourcing	Supplier handles sourcing	Customer supplies parts
Schedule control	Better when supplier has purchasing strength	Depends on customer kit readiness
Accountability	One supplier owns more process steps	Responsibility is split
Best use	Prototype-to-pilot and complex builds	Controlled inventory or special parts
Main risk	Supplier substitution must be approved	Short kits and handling damage
Engineering value	Faster feedback loop	More customer material control

Prototype vs Production Assembly

Item	Prototype Assembly	Production Assembly
Quantity	1-100 boards common	Hundreds to thousands
Main goal	Prove design and process	Repeatable yield and cost control
Tooling	Flexible setup	Optimized stencil, fixtures, test jigs
Inspection	Higher engineering review	Standardized QC plan
Test	Debug-friendly	Cycle-time-controlled
Output	Design correction data	Stable manufacturing baseline

Quality Control Plan

PCBA QC Gates

A strong PCB assembly service uses stage gates instead of one final inspection.

QC gates:

1. Incoming PCB and component inspection.
2. Solder paste and stencil verification.
3. SPI after paste printing.
4. First article inspection after placement.
5. AOI after reflow.
6. X-ray for hidden solder joints.
7. THT solder inspection.
8. ICT or flying probe.
9. Functional test.
10. Final visual inspection.
11. Packing and traceability check.

Quality Records

Quality records should be kept by lot, board serial number, or panel code when required.

Useful records:

• Paste batch and expiry
• Reflow profile
• AOI defect log
• X-ray images for BGA builds
• ICT data
• Functional test report
• Rework log
• Conformal coating record
• Firmware version
• Final inspection report

Real Factory Case

Project Background

A customer ordered PCB assembly services for a 4G industrial gateway used in a sealed metal enclosure. The design used mixed SMT and THT, one BGA processor, a cellular module, two board-to-board connectors, terminal blocks, LEDs, SIM socket, and a 12 V input power section.

Item	Project Data
Service model	Partial turnkey PCBA
Board type	Mixed SMT and THT assembly
Layer count	8 layers
Board thickness	1.6 mm
Finish	ENIG
Smallest passive	0201
BGA pitch	0.5 mm
THT parts	Terminal block, shield tabs, relay
Test	ICT plus functional test
Inspection	SPI, AOI, X-ray, visual inspection
Thermal validation	45-minute run at 60 C

Issue Found

The first 250-piece pilot run passed basic AOI at a high rate, but functional test found failures after heat exposure.

Failure data:

• 9 units lost cellular communication after 30 minutes.
• 7 units had insufficient solder fill on terminal block pins.
• 5 units showed BGA void concentration above the internal limit.
• 4 units had intermittent reset during 12 V load switching.
• First-pass yield was 90.0%.

Root causes:

1. The BOM listed two alternate buck converters with different thermal pad recommendations.
2. The stencil aperture under one QFN was copied from the old revision.
3. Selective solder dwell time for terminal blocks was too short.
4. BGA X-ray sampling was set at 10%, too low for pilot risk.
5. The functional test did not originally include load switching.

Corrective Actions

The assembly team changed:

• Locked the approved buck converter MPN for pilot production.
• Reduced QFN thermal pad aperture by 15%.
• Increased terminal block selective solder dwell from 2.6 seconds to 4.0 seconds.
• Raised BGA X-ray inspection from 10% to 100% for the next pilot.
• Added 12 V load switching to functional test.
• Added thermal soak before final pass.

This case shows why PCBA services must connect BOM control, stencil design, selective soldering, X-ray inspection, and functional testing. The process improvement did not require a board redesign. It required assembly data discipline and pilot-level quality gates.

Common Assembly Errors

File Package Errors

• Missing centroid file
• BOM without manufacturer part numbers
• No approved alternates
• Gerber paste layer not reviewed
• Assembly drawing missing polarity
• No test specification
• Missing firmware version
• No IPC class requirement

Process Setup Errors

• Stencil copied from previous revision
• Reflow profile not measured on the actual board
• SPI skipped for fine-pitch assemblies
• Feeder verification not documented
• X-ray sampling too low for BGA pilot
• Selective solder keepout not checked
• ICT fixture designed too late

Production Release Errors

• Prototype settings used unchanged for production
• No AVL lock before pilot
• No serial traceability
• No rework limit
• No moisture-sensitive device control
• No thermal or load test for power products
• No feedback loop from field returns to assembly process

FAQ About PCB Assembly Services

Question: What are PCB assembly services?

Answer: PCB assembly services turn a bare printed circuit board into a functional PCBA by sourcing or receiving components, applying solder paste, placing parts, reflow soldering, integrating through-hole components, inspecting solder joints, testing the assembly, and preparing the finished circuit card assembly for use.

Question: What files are needed to start PCBA?

Answer: A PCBA project needs Gerber files, drill files, BOM, pick-and-place centroid data, assembly drawing, fabrication notes, polarity notes, test specification, firmware file when required, and clear sourcing instructions for turnkey, consigned, or partial turnkey assembly.

Question: What is the difference between turnkey and consigned PCB assembly?

Answer: Turnkey PCB assembly means the supplier manages PCB fabrication, component sourcing, assembly, inspection, and often testing. Consigned assembly means the customer supplies the PCB and components, while the supplier performs assembly and inspection. Partial turnkey splits sourcing between both sides.

Question: How should engineers choose PCB assembly services?

Answer: Engineers should choose PCB assembly services by matching the board to the supplier’s SMT, THT, BGA, X-ray, ICT, functional test, sourcing, traceability, and quality control capability. The right supplier should review files, flag BOM risk, verify process limits, and provide inspection data before production release.
