Turnkey PCB Assembly Services Guide

Turnkey PCB Assembly is a complete manufacturing service in which one supplier manages design review, component sourcing, PCB fabrication, printed circuit board assembly, inspection, testing, and delivery of finished PCBA units. For engineers, the value is process ownership: the same manufacturing team checks Gerber data, BOM risk, centroid files, component availability, stencil design, SMT setup, reflow profile, through-hole integration, X-ray needs, ICT access, functional testing, and traceability before the circuit card assembly moves into production. IPC J-STD-001 defines soldering process and material requirements, while IPC-A-610 defines post-assembly acceptance criteria for electronic assemblies.

Learn more about: PCB Assembly Services for Engineers

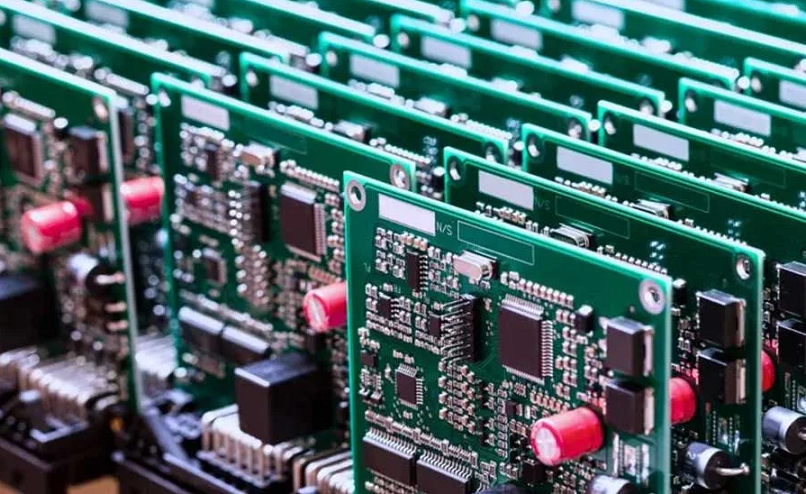

Turnkey PCB Assembly

What Turnkey Covers

Turnkey PCB Assembly connects fabrication, procurement, assembly, and testing under one controlled production workflow. Instead of sending bare boards to one supplier, parts to another, and test fixtures to a third, the turnkey supplier manages the complete build package.

A complete turnkey PCBA workflow usually covers:

• Gerber, ODB++, or IPC-2581 review
• Bill of Materials review
• Pick-and-place data review
• PCB fabrication
• Component sourcing
• Alternate part approval
• SMT stencil design
• Solder paste printing
• Component placement
• Reflow soldering
• Through-hole assembly
• AOI, X-ray, ICT, and functional test
• Firmware loading when required
• Labeling, packing, and delivery

PCB, PCBA, and Turnkey

Term	Meaning	Turnkey Role
PCB	Bare printed circuit board	Fabricated before assembly
PCBA	PCB with soldered components	Main turnkey output
Circuit card assembly	Industrial term for assembled board	Used in controlled production records
Printed circuit assembly	Assembled electronic circuit board	Same practical meaning as PCBA
PCB manufacturing and assembly	Fabrication plus component assembly	Full turnkey responsibility

IPC-2221 is a generic printed board design standard, and IPC-6012 defines qualification and performance requirements for rigid printed boards. These standards matter before assembly because fabrication quality affects final PCBA yield.

How It Works

Design Review

The turnkey process starts with engineering review. This step finds file errors, BOM risk, footprint mismatches, component shortages, soldering issues, and test access gaps before money is spent on boards and parts.

Design review checks:

• Gerber and drill alignment
• Board outline and slots
• Copper-to-edge clearance
• Solder mask openings
• Paste layer quality
• Component footprint match
• Polarity and orientation marks
• BGA, QFN, and fine-pitch package risk
• Test point access
• ICT fixture feasibility
• Conformal coating keepout
• IPC class requirement

Review Item	Practical Check	Production Risk Reduced
Gerber package	Copper, mask, paste, silkscreen, outline	Missing or mismatched board layers
BOM	MPN, value, package, lifecycle	Wrong parts or unavailable parts
Centroid file	X/Y, rotation, side, refdes	Placement rotation errors
Footprints	Pad size, mask, paste, courtyard	Solder bridges and opens
Test access	Probe pads and fixture clearance	Low test coverage

Sourcing

Component sourcing is one of the biggest reasons engineers choose turnkey PCBA. The supplier checks availability, pricing, MOQ, lead time, authenticity, packaging format, and substitute risk.

Sourcing controls:

• Match MPN exactly to BOM.
• Check lifecycle status: active, NRND, obsolete.
• Confirm packaging: reel, cut tape, tray, tube.
• Verify moisture sensitivity level for ICs.
• Approve alternate parts before purchasing.
• Avoid gray-market parts unless the customer authorizes them.
• Track date code and lot code for critical parts.

For high-reliability PCBA, sourcing is not just purchasing. It is risk control.

Fabrication

In full turnkey PCB fabrication and assembly, the same supplier or controlled partner fabricates the bare PCB before assembly. The board must match the assembly process.

Fabrication checks:

• Final board thickness: common values include 1.0 mm, 1.2 mm, 1.6 mm, and 2.0 mm
• Copper weight: 1 oz is common; 2 oz or higher for power boards
• Surface finish: ENIG, OSP, immersion silver, or HASL by project need
• Minimum trace and space: often 100/100 microns for standard designs
• Finished hole size: matched to THT lead diameter
• Controlled impedance: 50 ohm, 90 ohm, 100 ohm where required
• Electrical test: 100% E-test for production boards

Fabrication to Assembly

Assembly

Assembly converts the fabricated PCB into a functional PCBA. The exact route depends on SMT-only, THT-only, or mixed-technology requirements.

Core assembly sequence:

1. Print solder paste through stencil.
2. Inspect paste by SPI when required.
3. Place SMT components.
4. Reflow the first SMT side.
5. Repeat for second side if needed.
6. Insert through-hole components.
7. Solder THT parts by wave, selective, or manual process.
8. Inspect solder joints.
9. Run electrical and functional tests.
10. Pack and ship finished assemblies.

Core Process Parameters

Process Step	Common Production Range	Why It Matters
Stencil thickness	0.10-0.15 mm	Controls paste volume
Fine-pitch stencil	0.08-0.10 mm by review	Supports QFN, BGA, 0201
Placement accuracy	±25-50 microns	Controls SMT alignment
Lead-free reflow peak	235-250 C	Melts SAC solder alloy
Time above liquidus	45-90 seconds	Forms solder joints
THT hole clearance	Lead diameter + 0.15-0.30 mm	Enables insertion and solder fill
Selective solder dwell	2-5 seconds by joint mass	Controls wetting

Testing and Delivery

Testing verifies that the PCBA works before delivery. The test plan should match the product risk, not only the order quantity.

Testing options:

• AOI for visible solder and placement
• X-ray for BGA, LGA, QFN, and hidden joints
• Flying probe for prototypes and low volume
• ICT for medium and high volume
• Boundary scan for dense digital boards
• Functional test for product behavior
• Thermal test for industrial and power products
• Firmware programming and serial number logging

IPC-A-610 is a post-assembly acceptance standard used to verify finished assemblies, while J-STD-001 focuses on soldering process and materials.

Learn more about: What Is PCB Assembly

Types of Turnkey Solutions

Full Turnkey

Full Turnkey means the supplier manages PCB fabrication, component sourcing, assembly, inspection, testing, and delivery.

Full turnkey is useful when:

• The project needs one manufacturing owner.
• Component sourcing is complex.
• Prototype schedule is tight.
• Engineering feedback must move quickly.
• The product uses BGA, QFN, fine-pitch ICs, or mixed THT.
• The buyer wants fewer supplier handoffs.

Full Turnkey Item	Supplier Responsibility	Engineering Value
PCB fabrication	Board manufacturing and E-test	Fewer file transfer errors
Component sourcing	Purchase and AVL checking	Reduced procurement workload
SMT assembly	Paste, placement, reflow	Controlled solder process
THT integration	Insertion and soldering	Better mechanical reliability
Test	ICT or functional test	Ship-ready PCBA validation
Delivery	Packing and logistics	One accountable shipment

Partial Turnkey

Partial Turnkey means the customer supplies some items, while the assembly supplier handles the rest. This model is common when engineers want to control expensive ICs, programmed parts, custom modules, or long-lead components.

Partial turnkey is useful when:

• The customer already owns inventory.
• Some parts require controlled programming.
• A critical chip has allocation risk.
• Engineering wants to approve key components.
• The supplier can source common passives and connectors.

Full Turnkey vs Partial Turnkey

Item	Full Turnkey	Partial Turnkey
Component ownership	Supplier manages most or all parts	Customer supplies selected parts
Procurement workload	Lower for customer	Shared
Schedule risk	Supplier controls more variables	Customer kit delays can affect schedule
Best use	Fast prototype-to-production flow	Critical or allocated components
Accountability	More centralized	Split by supplied material
Main control point	AVL approval	Kit accuracy and incoming inspection

Key Benefits

Faster Time-to-Market

Turnkey PCB Assembly reduces schedule loss caused by supplier handoffs. When the same team handles fabrication, sourcing, printed circuit assembly, and test, engineering questions move faster.

Time-saving examples:

• BOM risk is checked before purchasing.
• PCB fabrication notes are reviewed against assembly needs.
• Stencil design starts before all boards are completed.
• X-ray requirements are planned before BGA placement.
• Test fixture planning starts during prototype build.
• Failed pilot data returns to one process owner.

A practical prototype schedule can save several days when fabrication, SMT setup, and sourcing run in parallel instead of waiting in separate queues.

Simplified Supply Chain

Turnkey PCBA reduces purchasing and coordination work. It also reduces errors caused by incomplete handoffs.

Supply chain simplification includes:

• One purchase order
• One supplier communication path
• One DFM feedback loop
• One build schedule
• One quality report package
• One shipment of completed assemblies

This is especially valuable when a board contains 150 to 800 BOM lines, several package types, and multiple inspection requirements.

Lower Procurement Costs

Turnkey procurement can lower cost through consolidated purchasing, alternate part review, reel usage planning, and reduced freight between suppliers. The cost benefit depends on component availability and supplier purchasing strength.

Cost controls:

• Approve alternate parts early.
• Use standard resistor and capacitor values where possible.
• Avoid single-source components unless required.
• Allow reel planning for repeated builds.
• Separate prototype substitutions from production AVL.
• Review MOQ and attrition before purchase.

Fewer Errors

Turnkey reduces errors by connecting design review, sourcing, fabrication, assembly, and test. When one team owns the whole process, mismatches are easier to catch.

Typical errors reduced:

• Wrong package ordered from BOM
• Gerber and assembly drawing mismatch
• Centroid rotation mistake
• Incorrect stencil aperture
• Missing test pads
• BGA X-ray not planned
• THT keepout ignored
• Firmware not loaded before shipment

Quality Control

Turnkey QC Gates

A reliable turnkey process uses quality gates instead of one final check.

QC gates:

1. File completeness review.
2. BOM and AVL approval.
3. Incoming component inspection.
4. Bare PCB inspection.
5. Stencil and paste review.
6. First article inspection.
7. AOI after reflow.
8. X-ray for hidden solder joints.
9. THT solder inspection.
10. ICT or flying probe.
11. Functional test.
12. Final visual inspection.
13. Packing and traceability check.

Documentation Records

Quality records give engineers proof that the build followed the agreed process.

Records may include:

• Approved BOM
• AVL and substitution log
• Material certificates
• Paste batch record
• Reflow profile
• AOI report
• X-ray images for BGA lots
• ICT report
• Functional test log
• Rework record
• Firmware version
• Serial number list
• Final inspection report

Getting Started

Files Needed

A turnkey build cannot start cleanly with Gerber files alone. The supplier needs design, sourcing, placement, assembly, and test data.

Required package:

• Gerber or ODB++ files
• Excellon drill file
• Board outline drawing
• Bill of Materials
• Pick-and-place centroid file
• Assembly drawing
• Fabrication drawing
• Approved vendor list
• Test procedure
• Firmware file if required
• Programming instructions
• Packaging instructions
• IPC class requirement

BOM Readiness

The BOM should be production-ready, not only design-readable.

A good BOM includes:

• Reference designator
• Quantity
• Manufacturer part number
• Approved alternates
• Description
• Value
• Tolerance
• Voltage or power rating
• Package
• Lifecycle status
• Customer-supplied status
• Do-not-populate marks

Centroid Data

The centroid file controls automated component placement. Rotation mismatch is one of the most common assembly problems in prototype builds.

Centroid data should include:

• Reference designator
• X coordinate
• Y coordinate
• Rotation
• Board side
• Package name
• Polarity note where needed

Before release, the centroid file should match the assembly drawing, BOM, and silkscreen orientation.

Two Key Comparisons

Turnkey vs In-House Coordination

Item	Turnkey PCB Assembly	In-House Supplier Coordination
Supplier count	One main owner	Multiple suppliers
Schedule control	Centralized	Split between teams
BOM management	Supplier-supported	Customer-managed
Fabrication feedback	Linked to assembly	Often separated
Error responsibility	Easier to trace	Often disputed
Best fit	Fast builds and complex PCBA	Teams with mature supply chain

Prototype Turnkey vs Production Turnkey

Item	Prototype Turnkey	Production Turnkey
Build quantity	1-100 boards	Hundreds to thousands
Main goal	Prove design and process	Repeatable yield and cost
BOM flexibility	Higher	Lower after AVL lock
Test method	Debug-friendly	Cycle-time-controlled
Inspection depth	Higher engineering review	Stable QC plan
Main output	Design correction data	Production baseline

Real Factory Case

Project Background

A customer released a turnkey PCBA project for a compact industrial sensor gateway. The unit used a 6-layer PCB, one 0.5 mm BGA microcontroller, a wireless module, USB-C connector, two terminal blocks, a relay, LEDs, and a 24 V input power stage.

Item	Project Data
Service model	Full turnkey PCB Assembly
Board type	Mixed SMT and THT PCBA
Layer count	6 layers
Board thickness	1.6 mm
Surface finish	ENIG
Smallest passive	0201
BGA pitch	0.5 mm
THT parts	Relay, terminal blocks, shield tabs
Test method	ICT plus functional test
Thermal test	40-minute run at 60 C

Issue Found

The first 180-piece pilot build passed basic AOI, but full functional test exposed several issues:

• 6 boards reset during 24 V load switching.
• 5 boards had insufficient solder fill on relay pins.
• 4 boards showed wireless module startup failure after thermal soak.
• 3 boards had BGA void concentration above internal limit.
• First-pass yield was 90.0%.

Root causes:

1. The BOM allowed two regulator alternates with different thermal pad layouts.
2. The stencil aperture for the regulator pad was not adjusted for the selected alternate.
3. Selective solder dwell time on the relay row was too short.
4. BGA X-ray sampling was set at 15%, which missed early process drift.
5. The functional test did not include fast 24 V load switching during the first run.

Corrective Result

The turnkey team locked one regulator MPN, reduced the thermal pad aperture by 18%, increased selective solder dwell from 2.8 seconds to 4.2 seconds, raised BGA X-ray inspection to 100% for the next pilot, and added load-switch cycling to the test procedure.

Metric	First Pilot	Revised Pilot
Load-switch reset failures	6/180	0/360
Relay solder-fill defects	5/180	0/360
Wireless thermal failures	4/180	1/360
BGA void rejects	3/180	1/360
First-pass yield	90.0%	99.4%

This case shows why turnkey PCBA is not only a buying model. It is an engineering feedback system that connects BOM control, stencil design, selective soldering, X-ray inspection, and functional testing.

Common Turnkey Errors

File Package Errors

• Missing centroid file
• BOM without approved manufacturer part numbers
• Assembly drawing missing polarity
• Gerber paste layer not reviewed
• Missing fabrication notes
• No IPC class requirement
• No firmware file or version control
• No packaging requirement

Sourcing Errors

• Unapproved part substitutions
• Obsolete parts left in BOM
• Wrong package ordered
• Cut-tape parts without attrition allowance
• Moisture-sensitive parts stored incorrectly
• Customer-supplied kits arriving short
• No AVL lock before pilot production

Assembly and Test Errors

• Reflow profile not measured on the actual board
• Stencil aperture copied from an older revision
• X-ray sampling too low for BGA pilot builds
• Selective solder keepout ignored
• ICT fixture started too late
• Functional test missing real load conditions
• Prototype rework not fed back into production notes

FAQ About Turnkey PCB Assembly

Question: What is Turnkey PCB Assembly?

Answer: Turnkey PCB Assembly is a manufacturing service where one supplier manages PCB fabrication, component sourcing, solder paste printing, component placement, reflow soldering, through-hole integration, inspection, testing, and delivery of finished PCBA units.

Question: What is the difference between full turnkey and partial turnkey?

Answer: Full turnkey means the supplier handles the PCB, components, assembly, testing, and delivery. Partial turnkey means the customer supplies selected components or materials while the supplier handles the remaining sourcing, assembly, inspection, and test work.

Question: What files are needed for turnkey PCBA?

Answer: A turnkey PCBA build needs Gerber or ODB++ files, drill files, BOM, centroid data, assembly drawing, fabrication drawing, approved vendor list, test procedure, firmware instructions when required, packaging instructions, and IPC class requirements.

Question: How should engineers choose turnkey PCB assembly?

Answer: Engineers should choose turnkey PCB assembly by checking the supplier’s fabrication control, component sourcing process, SMT capability, THT process, BGA X-ray capability, ICT or functional test support, traceability system, and ability to provide DFM feedback before the build starts.
